Assign Labels

The Labels action is available for:

  • Single SIMs from the SIMs table

  • Multiple SIMs from the SIMs table

  • SIM on the SIM Info page:

    • Using the Action menu

    • Directly from the Labels Info area on the SIM Info page

SIM Labelling allows an operator to tag SIMs with labels for these purposes:

  • Grouping SIMs with common parameters

  • Filtering SIMs

  • Actions or bulk operations on SIMs with common label

Guidelines

Labels are assigned to SIMs in a single account. However, the label is not unique to that account and the same label can be applied to SIMs in a different account.

The SIM label is case-sensitive.

The SIM label structure is limited to:

  • A single word (no spaces allowed)

  • Alphanumeric characters only (a, b, c, 0, 1, 2, etc.)

  • Special characters are not allowed

  • Underlines between characters are not allowed

You can also create Labels using Settings > Labels. After you create them there, you must return to the SIMs module to assign them to SIMs.

To Label a SIM from the Action menus:

  1. Invoke the Labels action, as described above.

The SIMs Label dialog appears:

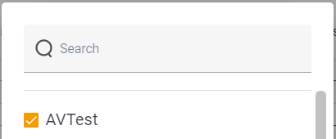

SIMS Label Dialog (showing one created Label)

Note that when you open the SIMs Label dialog, all existing labels appear in the dialog with a checkbox in one of these states:

  • : The (existing) label is not assigned to any selected SIM

  • : The (existing) label is assigned to all selected SIMs

  • : The (existing) label is assigned to only some of the selected SIMs

  1. Do one of the following:

  • Existing Label: Type the label name in the Search field to find the label and then click the existing label checkbox several times until the icon appears in the check box:

The label is assigned to all selected SIMs (when you click Apply).

The Associated SIMs column in the Labels table at Settings > Labels is updated with the newly associated SIMs.

  • New Label: Type the name of the new label in the Search field and select the new label:

The new label(s) is added to the Labels table (when you click Apply) at Settings > Labels.

  1. Click Apply and the label(s) is assigned to the SIMs you selected.

To Remove Labels from a SIM using the Action menus:

  1. Invoke the Labels action, as described above:

The SIMs Label dialog appears showing the Labels assigned to the SIM.

  • The icon appears in the checkbox of each label assigned to the selected SIM(s) when:

    • You invoke Labels from a single SIM row (using the icon)

    • The label is assigned to all the SIMs you selected (using the checkboxes on the left side of the SIM rows)

  • The icon appears in the checkbox of each label assigned to the selected SIM(s) when:

    • The label is assigned to only some of the SIMs you selected (using the checkboxes on the left side of the SIM rows)

  1. Click the check box of the label(s) you want to remove from the SIMs one or more times to toggle between the three options, (, , ) until the check box is empty ().

  2. Click Apply.

The SIM is removed from the Associated SIMs column in the Labels table at Settings > Labels .

To Add/Remove a Label from a SIM from the Labels Info area in the SIMs Info Page

You can add or remove a label to or from a single SIM (the one selected from the SIMs table) from the SIM Info page.

  1. From the SIMs table, click on the table row containing the SIM or select a SIM from a Search action result list.

The SIM Info page appears.

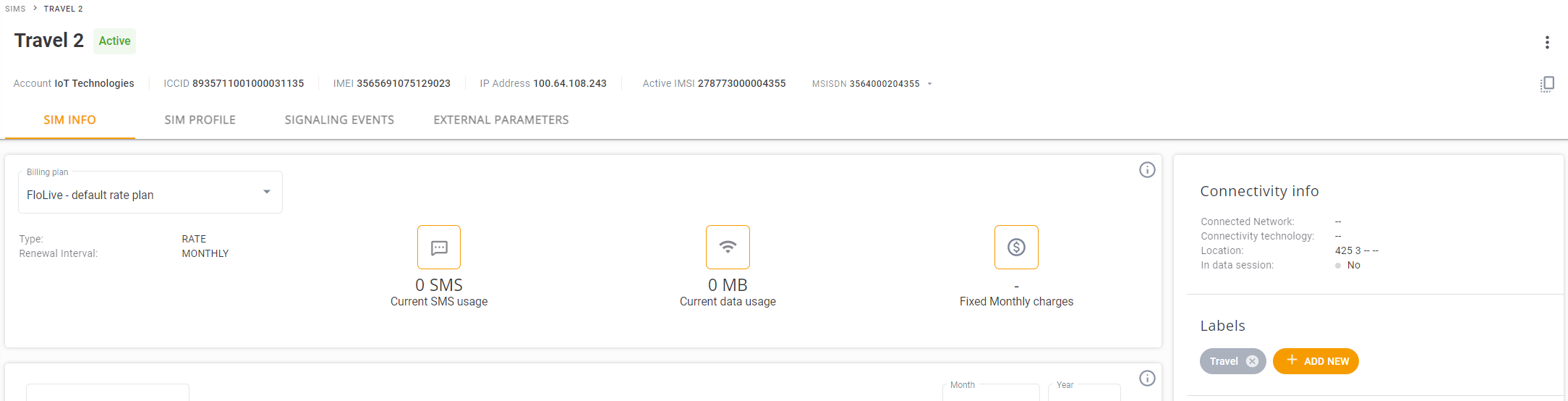

SIM Info Page Showing Labels Panel

  1. Under the Labels panel, click.

The SIMs label dialog appears.

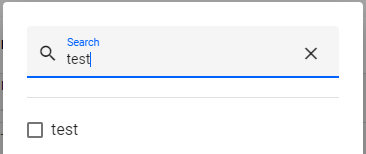

  • Existing Label: Type the label name in the Search field and select the existing label check box:

Note that when you open the SIMs Label dialog, all existing labels appear in the dialog with a checkbox in one of these states:

  • : The (existing) label is not assigned to the SIM

  • : The (existing) label is already assigned to the SIM

The Associated SIMs column in the Labels table at Settings > Labelsis updated with the newly associated SIM.

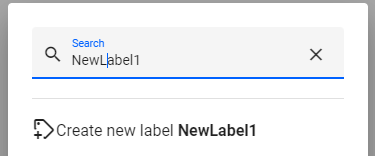

  • New Label: Type the name of the new label in the Search field and select the new label:

The new label is added to the Labels table (when you click Apply) at Settings > Labels.

  1. To Remove a label(s) from the SIM, the Labels Panel on the SIM Info page and click the on the label: .

The SIM is removed from the Associated SIMs column in the Labels table at Settings > Labels .
